Proterra Tough i30 - 100/142mm - 65% off

Proterra Tough i30 - 100/142mm - 65% off

$113.95

$389.95

Select Product

View Specs

Product Description

Proterra Tough i30 wheels keep the trail in check while everything else blurs by in the periphery. Reinforced by our proven Dual I-Beam support, Proterra Tough rims feature a 30mm internal width to provide higher tire volume while also increasing sidewall support at lower pressures. High-quality EZO sealed bearings are designed to endure through seasons of aggressive riding while a responsive 6-pawl freehub provides the snappy 5 degrees of engagement you demand when cranking out of corners. Choose Proterra Tough when you need a wheel that won’t let you down.

Usage: Trail / Enduro

Features

Technology

View the Specs

FAQs

Reviews

features

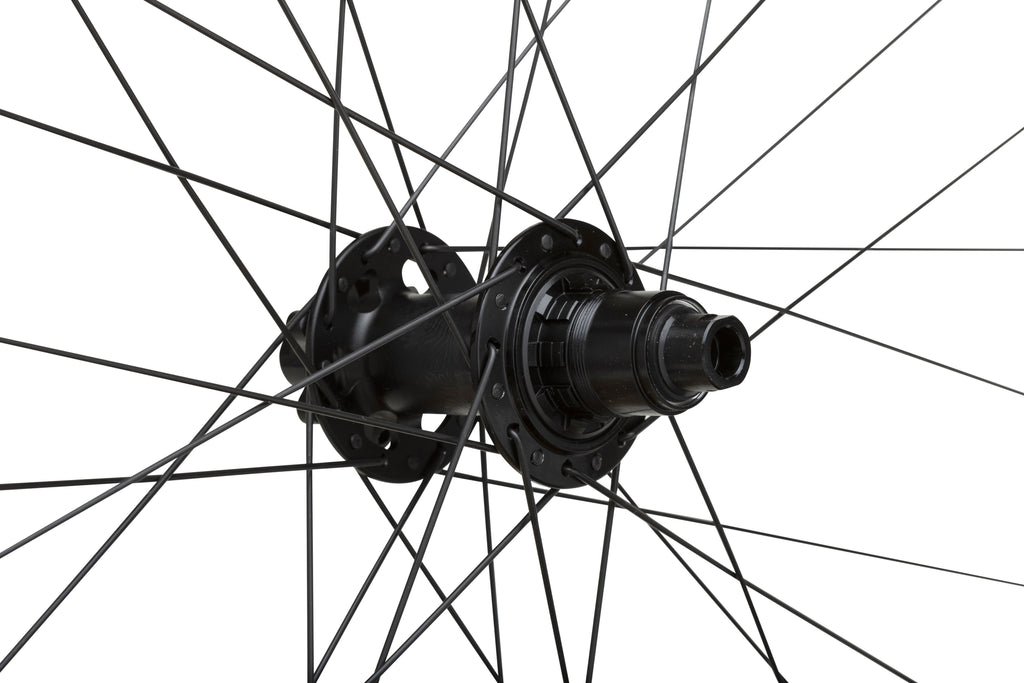

Frequency Hub

Frequency hubs feature a low-drag, 6-pawl design that alternates contact between two sets of 3-pawl groupings to provide a responsive 5 degrees of freehub engagement.

Solid Strip & TCS Tape

Durable nylon strip that lies between the rim and tubeless tape to prevent tubeless tape from pushing into the spoke holes and ensures a smooth interface between the tire and rim. The smooth surface makes it easier to mount a tire by preventing air from escaping around the bead at each indent during inflation. Solid Strip also protects the airtight system from puncture in the case of a broken spoke.

3-Cross Lacing and Nipples

Too many companies are trying to save weight by offering "enduro" wheels with 2-cross lacing patterns and inadequate nipples. While those are suitable for XC and light trail usage, there's no replacement for the longterm reliability of a 3-cross lacing pattern with our standard nipples holding it all together.

30mm inner rim width

Enduro and aggressive trail riders across the globe have adopted 30mm as the go-to size for tires in the most common widths of 2.4-2.5". Most trail and enduro tires are now designed to be installed on a 30mm rim and doing so will optimize the air volume, sidewall support and tire profile of those tires. As XC becomes more aggressive and companies offer wider XC tires, these lightweight 30mm rims are also an excellent choice for XC riders who prioritize confidence over shaving grams.

Hand-Built in California

Proterra wheels are hand-built in our California wheel building facility at the base of Mount Tamalpais, where mountain biking began. Our team of wheel wizards lace, tension and tape every Proterra with the same attention to detail they provide their own wheels. This hands-on approach allows us to confidently stand behind our wheels as the most reliable on the market.

PRODUCT TECHNOLOGY

TCS (Tubeless Compatible System) is our industry-leading tubeless rim/tire system designed to international ETRTO and ISO standards.

6069 is the perfect aluminum alloy for bicycle rims due to its high tensile and fatigue strength, minimal weight, and excellent anti-corrosion properties.

Spoke holes are drilled at an angle to match the natural spoke path between a rim and hub. Eliminates binding and lateral loading of the nipples to increase wheel durability.

Two vertical supports drastically increase rim strength while also improving lateral stiffness and minimizing deflection in rocky, unpredictable terrain.

Rim ends are hydraulically pressed over an extruded aluminum insert that matches the inner cavity of the rim and is further reinforced by industrial epoxy.

Sloped rim valley allows the bead of the tire to easily and smoothly move into place during installation and inflation.

Installed between the rim and tubeless tape to prevent tape from sagging at each spoke hole and make tire inflation easier while also preventing puncture from a broken spoke.

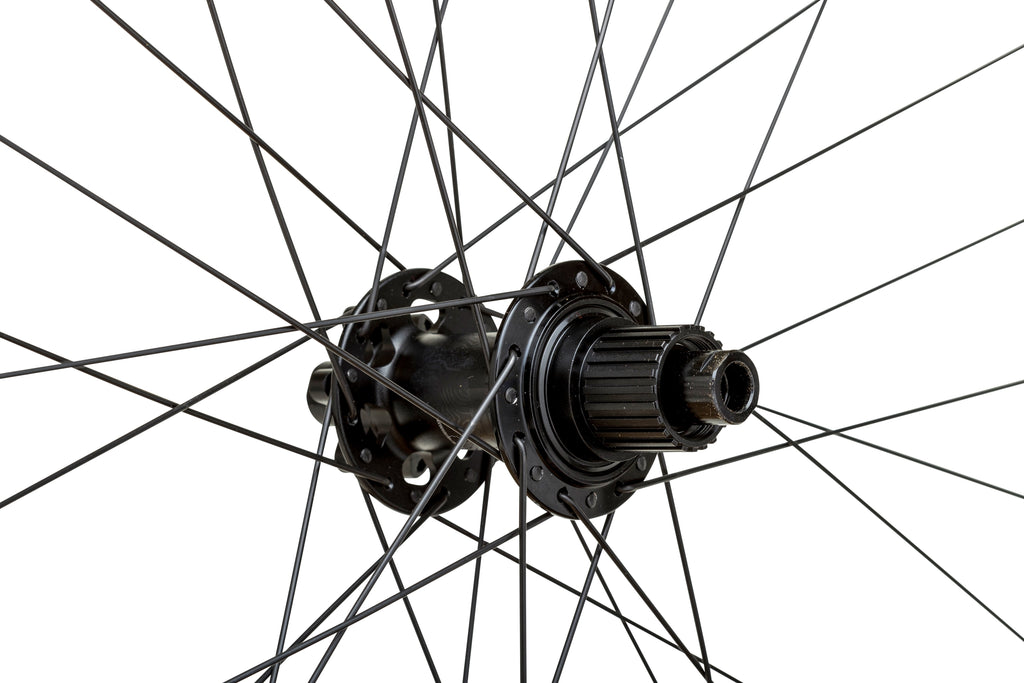

Freehub ratchet system quickly alternates between two groups of three pawls each to provide quick engagement and trusted durability.

SPECIFICATIONS: (Max spoke tension range: 110-120KgF)

Product	Wheel Diameter	Position	Spacing	Spoke Holes	Driver Body	Rotor Mount	Inner Rim Width	Rim ERD*	Weight**	Max Rider Weight	Part Number
Proterra Tough i30 x 27.5 wheel, 100 x 15mm, 32h, 6-bolt, DB	27.5"	Front	15x100mm	32-hole	n/a	6-bolt	30mm	570	930g	290lbs	W045-0224
Proterra Tough i30 x 27.5 wheel, 142 x 12mm, 32h, 6-bolt, DB, SRAM XDR	27.5"	Rear	12x142mm	32-hole	SRAM XDR	6-bolt	30mm	570	1076g	290lbs	W045-0226
Proterra Tough i30 x 27.5 wheel, 142 x 12mm, 32h, 6-bolt, DB, Shimano MS	27.5"	Rear	12x142mm	32-hole	Shimano Microspline	6-bolt	30mm	570	1076g	290lbs	W045-0227
Proterra Tough i30 x 29 wheel, 100 x 15mm, 32h, 6-bolt, DB	29"	Front	15x100mm	32-hole	n/a	6-bolt	30mm	605	983g	290lbs	W045-0231
Proterra Tough i30 x 29 wheel, 142 x 12mm, 32h, 6-bolt, DB, SRAM XDR	29"	Rear	12x142mm	32-hole	SRAM XDR	6-bolt	30mm	605	1129g	290lbs	W045-0234
Proterra Tough i30 x 29 wheel, 142 x 12mm, 32h, 6-bolt, DB, Shimano MS	29"	Rear	12x142mm	32-hole	Shimano HG	6-bolt	30mm	605	1129g	290lbs	W045-0233

*Proterra hub dimensions can be found on our Resources and User Manuals page.

**Proterra wheel weights include the Solid Strip, tubeless tape and valve installed on each wheel.

TCS (Tubeless Compatible System)

TCS is our standardized tubeless rim/tire system designed to meet international ETRTO standards and deliver unbeatable tubeless performance and reliability. TCS components reduce weight, increase traction, virtually eliminate flats and has established itself as the most dependable tubeless system available. Our TCS system includes tires, rims, tape, sealant and valves to provide a comprehensive package of unrivaled tubeless performance and reliability. Every Proterra wheel benefits from our TCS (Tubeless Compatible System) system and ships with the Solid Strip, TCS tubeless tape and black alloy valves already installed. This means all Proterra wheels are ready for tubeless tires and sealant right out of the box.

Dependable 6069 Alloy

Proterra rims are extruded from WTB’s premier 6069 aluminum alloy to optimize strength while a bead blast finish and durable water-transfer decals keep your wheels looking fresh. Our extensive testing shows other 6000-series alloy to be less ding-resistant, while stiffer 7000-series alloys result in a harsher ride feel and tend to increase pinch flats. All of this ensures WTB Proterra wheels provide the compliance you expect on the first ride and the longevity you demand for every ride that follows.
